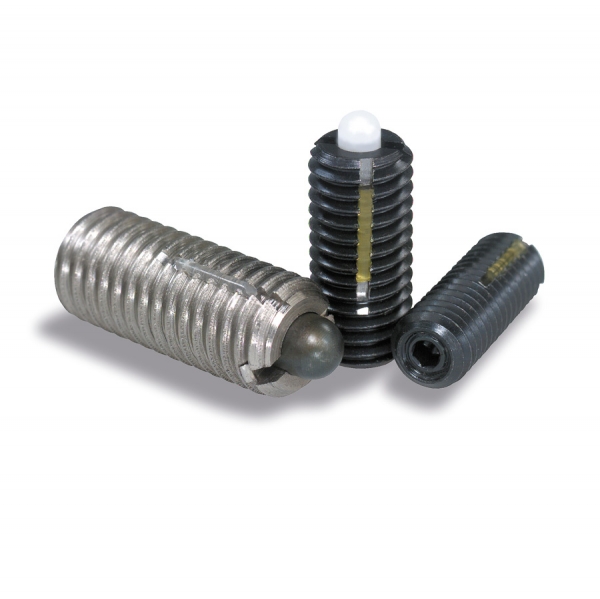

Spring plunger "Long-Lok" secured, pressure pin and hexagonal socket
SKU: VMLMP8L
Steel version : body in steel class 5.8 black oxide finish, pressure pin in hardened steel or in polyacetal plastic (POM), spring in spring steel class D. Long-Lok thread lock in nylon. Stainless steel version : body in stainless steel 1.4305, AISI 303, pressure pin in hardened stainless steel 1.4034 or in polyacetal plastic, spring in spring stainless steel 1.4310. L2 = 2 x thread pitch.
Ürün Özellikleri
Sertifikalar
REACHRoHS
Teknik Çizimler
Technical Specifications
Varyantlar
01 / 01 / Plunger, regular spring resistance
REF | DESIGNATION | D (MM) | D1 (MM) | H (MM) | L (MM) | N (MM) | RES_F1 (MM) | RES_F2 (MM) | S (MM) | T (MM) | T1 (MM) | WGT (MM) | C_EXTR (MM) | C_INS (MM) | L1 (MM) | 3D | Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9559 | SPRING PLUNGER STEEL M5 LONG LOK STEEL PIN | 5 | 2,4 | 2,3 | 18 | 0,8 | 6 | 20 | 1,5 | 2 | 0,8 | 1,3 | 0,08 | 0,12 | 7 | ||
| 9560 | SPRING PLUNGER STEEL M6 LONG LOK STEEL PIN | 6 | 2,7 | 2,5 | 20 | 1 | 7 | 20 | 2 | 2,5 | 1 | 2,5 | 0,22 | 0,45 | 7 | ||
| 9561 | SPRING PLUNGER STEEL M8 LONG LOK STEEL PIN | 8 | 3,5 | 3 | 22 | 1,2 | 9 | 35 | 2,5 | 3 | 1,4 | 6 | 0,37 | 1,05 | 8 | ||
| 9562 | SPRSPRING PLUNGER STEEL M10 LONG LOK STEEL PIN | 10 | 4 | 3 | 22 | 1,6 | 9 | 35 | 3 | 3,5 | 1,4 | 9 | 0,6 | 1,3 | 9 | ||
| 9563 | SPRING PLUNGER STEEL M12 LONG LOK STEEL PIN | 12 | 6 | 4 | 28 | 2 | 10 | 55 | 4 | 5 | 2 | 16 | 1,3 | 2 | 10 | ||
| 9564 | SPRING PLUNGER STEEL M16 LONG LOK STEEL PIN | 16 | 7,5 | 5 | 32 | 2,5 | 45 | 100 | 5 | 6 | 2,5 | 35 | 3 | 3,9 | 14 | ||
| 9565 | SPRING PLUNGER STEEL M5 LONG LOK PLAST. PIN | 5 | 2,4 | 2,3 | 18 | 0,8 | 6 | 20 | 1,5 | 2 | 0,8 | 1,3 | 0,08 | 0,12 | 7 | ||
| 9566 | SPRING PLUNGER STEEL M6 LONG LOK PLAST. PIN | 6 | 2,7 | 2,5 | 20 | 1 | 7 | 20 | 2 | 2,5 | 1 | 2,5 | 0,22 | 0,45 | 7 | ||
| 9567 | SPRING PLUNGER STEEL M8 LONG LOK PLAST. PIN | 8 | 3,5 | 3 | 22 | 1,2 | 9 | 35 | 2,5 | 3 | 1,4 | 6 | 0,37 | 1,05 | 8 | ||
| 9568 | SPRING PLUNGER STEEL M10 LONG LOK PLAST. PIN | 10 | 4 | 3 | 22 | 1,6 | 9 | 35 | 3 | 3,5 | 1,4 | 9 | 0,6 | 1,3 | 9 | ||
| 9569 | SPRING PLUNGER STEEL M12 LONG LOK PLAST. PIN | 12 | 6 | 4 | 28 | 2 | 10 | 55 | 4 | 5 | 2 | 16 | 1,3 | 2 | 10 | ||
| 9570 | SPRING PLUNGER STEEL M16 LONG LOK PLAST. PIN | 16 | 7,5 | 5 | 32 | 2,5 | 45 | 100 | 5 | 6 | 2,5 | 35 | 3 | 3,9 | 14 | ||
| 9559i | SPRING PLUNGER STAINL. M5 LONG LOK STAINL. PIN | 5 | 2,4 | 2,3 | 18 | 0,8 | 6 | 20 | 1,5 | 2 | 0,8 | 1,3 | 0,08 | 0,12 | 7 | ||
| 9560i | SPRING PLUNGER STAINL. M6 LONG LOK STAINL. PIN | 6 | 2,7 | 2,5 | 20 | 1 | 7 | 20 | 2 | 2,5 | 1 | 2,5 | 0,22 | 0,45 | 7 | ||
| 9561i | SPRING PLUNGER STAINL. M8 LONG LOK STAINL. PIN | 8 | 3,5 | 3 | 22 | 1,2 | 9 | 35 | 2,5 | 3 | 1,4 | 6 | 0,37 | 1,05 | 8 | ||
| 9562i | SPRING PLUNGER STAINL. M10 LONG LOK STAINL. PIN | 10 | 4 | 3 | 22 | 1,6 | 9 | 35 | 3 | 3,5 | 1,4 | 9 | 0,6 | 1,3 | 9 | ||
| 9563i | SPRING PLUNGER STAINL. M12 LONG LOK STAINL. PIN | 12 | 6 | 4 | 28 | 2 | 10 | 55 | 4 | 5 | 2 | 16 | 1,3 | 2 | 10 | ||
| 9564i | SPRING PLUNGER STAINL. M16 LONG LOK STAINL. PIN | 16 | 7,5 | 5 | 32 | 2,5 | 45 | 100 | 5 | 6 | 2,5 | 35 | 3 | 3,9 | 14 | ||
| 9565i | SPRING PLUNGER STAINL. M5 LONG LOK PLAST. PIN | 5 | 2,4 | 2,3 | 18 | 0,8 | 6 | 20 | 1,5 | 2 | 0,8 | 1,3 | 0,08 | 0,12 | 7 | ||
| 9566i | SPRING PLUNGER STAINL. M6 LONG LOK PLAST. PIN | 6 | 2,7 | 2,5 | 20 | 1 | 7 | 20 | 2 | 2,5 | 1 | 2,5 | 0,22 | 0,45 | 7 | ||
| 9567i | SPRING PLUNGER STAINL. M8 LONG LOK PLAST. PIN | 8 | 3,5 | 3 | 22 | 1,2 | 9 | 35 | 2,5 | 3 | 1,4 | 6 | 0,37 | 1,05 | 8 | ||
| 9568i | SPRING PLUNGER STAINL. M10 LONG LOK PLAST. PIN | 10 | 4 | 3 | 22 | 1,6 | 9 | 35 | 3 | 3,5 | 1,4 | 9 | 0,6 | 1,3 | 9 | ||
| 9569i | SPRING PLUNGER STAINL. M12 LONG LOK PLAST. PIN | 12 | 6 | 4 | 28 | 2 | 10 | 55 | 4 | 5 | 2 | 16 | 1,3 | 2 | 10 | ||
| 9570i | SPRING PLUNGER STAINL. M16 LONG LOK PLAST. PIN | 16 | 7,5 | 5 | 32 | 2,5 | 45 | 100 | 5 | 6 | 2,5 | 35 | 3 | 3,9 | 14 |
