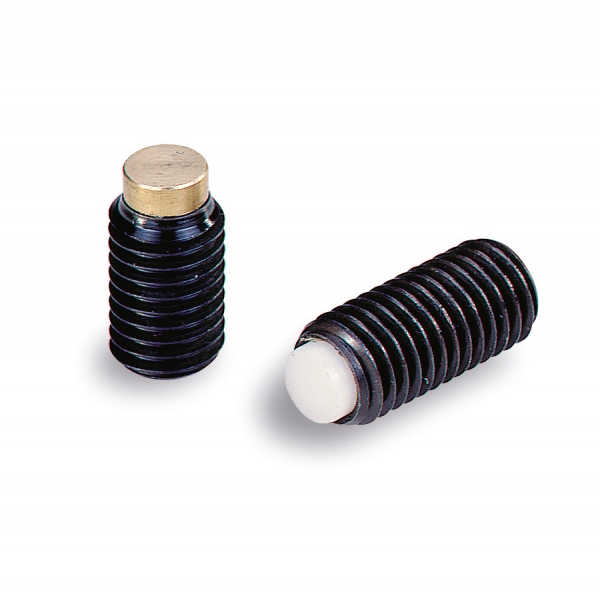

Pressure screw brass or plastic tip
SKU: VMEXRHZ
Screw quality class 10.9 in black oxide finish, tip in brass or polyacetal plastic (POM). Other dimensions on request.
Ürün Özellikleri
Sertifikalar
ReachRohs
Teknik Çizimler
Technical specifications
Schema - 01 / With brass tip
Schema - 02 / With plastic tip
Varyantlar
01 / 01 / With brass tip
REF | DESIGNATION | D (MM) | D1 (MM) | L (MM) | SW (MM) | 3D | Quote |
|---|---|---|---|---|---|---|---|
| 725065 | PRESSURE SCREW STEEL M4*6,5 INS BRASS | M4 | 2,5 | 6,5 | 2 | ||
| 7250105 | PRESSURE SCREW STEEL M4*10,5 INS BRASS | M4 | 2,5 | 10,5 | 2 | ||
| 7250165 | PRESSURE SCREW STEEL M4*16,5 INS BRASS | M4 | 2,5 | 16,5 | 2 | ||
| 725185 | PRESSURE SCREW STEEL M5*8,5 INS BRASS | M5 | 3 | 8,5 | 2,5 | ||
| 7251125 | PRESSURE SCREW STEEL M5*12,5 INS BRASS | M5 | 3 | 12,5 | 2,5 | ||
| 7251205 | PRESSURE SCREW STEEL M5*20,5 INS BRASS | M5 | 3 | 20,5 | 2,5 | ||
| 7252115 | PRESSURE SCREW STEEL M6*11,5 INS BRASS | M6 | 4 | 11,5 | 3 | ||
| 7252175 | PRESSURE SCREW STEEL M6*17,5 INS BRASS | M6 | 4 | 17,5 | 3 | ||
| 7252265 | PRESSURE SCREW STEEL M6*26,5 INS BRASS | M6 | 4 | 26,5 | 3 | ||
| 725312 | PRESSURE SCREW STEEL M8*12 INS BRASS | M8 | 5,5 | 12 | 4 | ||
| 725322 | PRESSURE SCREW STEEL M8*22 INS BRASS | M8 | 5,5 | 22 | 4 | ||
| 725332 | PRESSURE SCREW STEEL M8*32 INS BRASS | M8 | 5,5 | 32 | 4 | ||
| 725414 | PRESSURE SCREW STEEL M10*14 INS BRASS | M10 | 7 | 14 | 5 | ||
| 725418 | PRESSURE SCREW STEEL M10*18 INS BRASS | M10 | 7 | 18 | 5 | ||
| 725427 | PRESSURE SCREW STEEL M10*27 INS BRASS | M10 | 7 | 27 | 5 | ||
| 725437 | PRESSURE SCREW STEEL M10*37 INS BRASS | M10 | 7 | 37 | 5 | ||
| 7255185 | PRESSURE SCREW STEEL M12*18,5 INS BRASS | M12 | 8,5 | 18,5 | 6 | ||
| 7255225 | PRESSURE SCREW STEEL M12*22,5 INS BRASS | M12 | 8,5 | 22,5 | 6 | ||
| 7255325 | PRESSURE SCREW STEEL M12*32,5 INS BRASS | M12 | 8,5 | 32,5 | 6 | ||
| 7255425 | PRESSURE SCREW STEEL M12*42,5 INS BRASS | M12 | 8,5 | 42,5 | 6 |
20 varyant gösteriliyor
