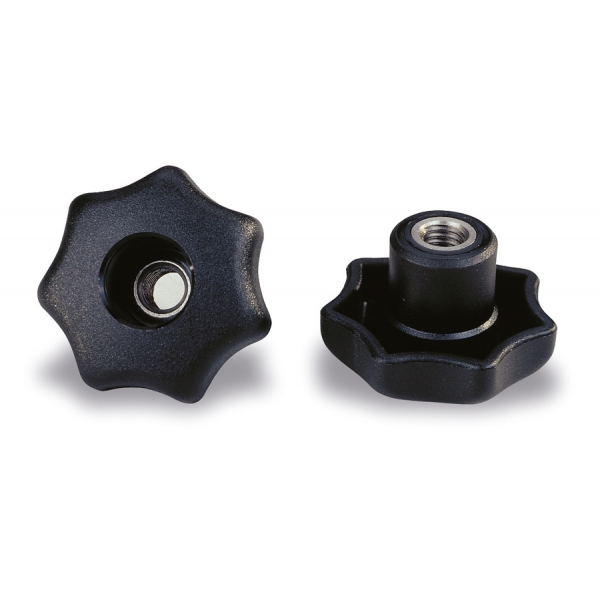

Knob BRT in composite plastic
SKU: VMPP2VC
Knob made of glass fibre reinforced polyamide, black matt, with insert either in zinc plated steel 5.8 or stainless steel 1.4305 AISI 303.
Ürün Özellikleri
Sertifikalar
REACHRoHS
Teknik Çizimler
Technical Specifications
Varyantlar
01 / Through insert
REF | DESIGNATION | D1 (MM) | D5 (MM) | H4 (MM) | D8 (MM) | H3 (MM) | WGT(G) (MM) | 3D | Quote |
|---|---|---|---|---|---|---|---|---|---|
| 9627 | KNOB BRT POLYA D25 STEEL INS THROUGH M4 | 25 | M4 | 16 | 12 | 8 | 11 | ||
| 9628 | KNOB BRT POLYA D25 STEEL INS THROUGH M5 | 25 | M5 | 16 | 12 | 8 | 10 | ||
| 9629 | KNOB BRT POLYA D25 STEEL INS THROUGH M6 | 25 | M6 | 16 | 12 | 8 | 10 | ||
| 9630 | KNOB BRT POLYA D32 STEEL INS THROUGH M5 | 32 | M5 | 20 | 14 | 10 | 13 | ||
| 9631 | KNOB BRT POLYA D32 STEEL INS THROUGH M6 | 32 | M6 | 20 | 14 | 10 | 13 | ||
| 9632 | KNOB BRT POLYA D40 STEEL INS THROUGH M8 | 40 | M8 | 25 | 18 | 13 | 25 | ||
| 9633 | KNOB BRT POLYA D40 STEEL INS THROUGH M10 | 40 | M10 | 25 | 18 | 13 | 24 | ||
| 9634 | KNOB BRT POLYA D50 STEEL INS THROUGH M8 | 50 | M8 | 32 | 22 | 17 | 50 | ||
| 9635 | KNOB BRT POLYA D50 STEEL INS THROUGH M10 | 50 | M10 | 32 | 22 | 17 | 48 | ||
| 9636 | KNOB BRT POLYA D50 STEEL INS THROUGH M12 | 50 | M12 | 32 | 22 | 17 | 46 | ||
| 9637 | KNOB BRT POLYA D63 STEEL INS THROUGH M10 | 63 | M10 | 40 | 26 | 21 | 90 | ||
| 9638 | KNOB BRT POLYA D63 STEEL INS THROUGH M12 | 63 | M12 | 40 | 26 | 21 | 88 | ||
| 9639 | KNOB BRT POLYA D63 STEEL INS THROUGH M16 | 63 | M16 | 40 | 26 | 21 | 87 | ||
| 9628i | KNOB BRT POLYA. D.25 STAINL. THROUGH M5 | 25 | M5 | 16 | 12 | 8 | 8 | ||
| 9631i | KNOB BRT POLYA. D.32 STAINL. THROUGH M6 | 32 | M6 | 20 | 14 | 10 | 10 | ||
| 9632i | KNOB BRT POLYA. D.40 STAINL. THROUGH M8 | 40 | M8 | 25 | 18 | 13 | 24 | ||
| 9635i | KNOB BRT POLYA. D.50 STAINL. THROUGH M10 | 50 | M10 | 32 | 22 | 17 | 40 | ||
| 9638i | KNOB BRT POLYA. D.63 STAINL. THROUGH M12 | 63 | M12 | 40 | 26 | 21 | 80 |
18 varyant gösteriliyor
