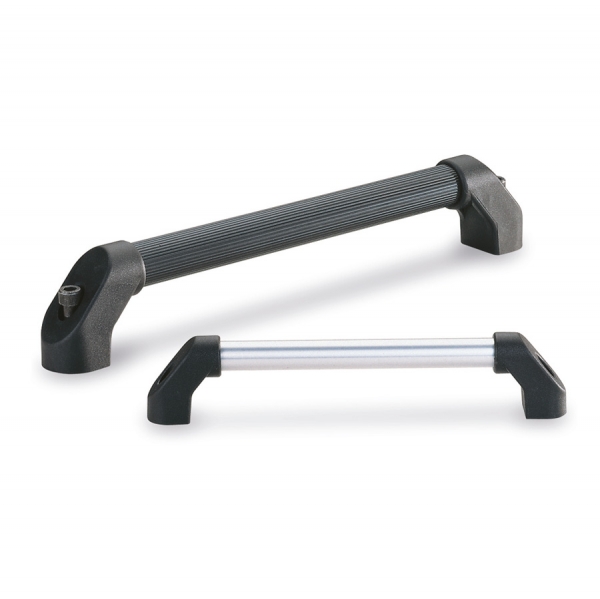

Handle DB with aluminium tube diam. 20mm
SKU: VM69ACU
Handle shanks and caps made of high duty polyamide, glass bead reinforced, black, half-matt. Connecting tube made of aluminium AlMgSi 0.5, ground and anodized. The handle shanks are designed with 4 clamping bars; when the tube is inserted, they will peel off and provide firm fitting. Handle supplied with galvanized fastening material. Handle is supplied assembled. Stress resistance min. 1000 N.
Ürün Özellikleri
Sertifikalar
REACHRoHS
Teknik Çizimler
Technical Specifications
Varyantlar
01 / Without plastic cover
REF | DESIGNATION | A (MM) | B (MM) | WGT. (G) (MM) | 3D | Quote |
|---|---|---|---|---|---|---|
| 10530 | HANDLE DB ALU 180MM FITTING M8 | 180 | 210 | 172 | ||
| 10531 | HANDLE DB ALU 200MM FITTING M8 | 200 | 230 | 179 | ||
| 10532 | HANDLE DB ALU 250MM FITTING M8 | 250 | 280 | 196 | ||
| 10533 | HANDLE DB ALU 300MM FITTING M8 | 300 | 330 | 215 | ||
| 10534 | HANDLE DB ALU 350MM FITTING M8 | 350 | 380 | 233 | ||
| 10535 | HANDLE DB ALU 400MM FITTING M8 | 400 | 430 | 250 | ||
| 10536 | HANDLE DB ALU 500MM FITTING M8 | 500 | 530 | 286 | ||
| 10537 | HANDLE DB ALU 600MM FITTING M8 | 600 | 630 | 322 |
8 varyant gösteriliyor
